LCD TFT displays
Display & Control offers an extensive portfolio of LCD TFT displays covering a wide range of diagonals and resolutions to meet the most diverse requirements. Our strength lies in displays with resolutions ranging from 480×272 to 2560×1440/1600. This range includes a wide range of form factors, adapted to specific applications and designs. To ensure that you always have full control over your displays, our displays are also available with modern touch technologies. This combination of flexibility and functionality makes our products a reliable choice for numerous applications.
LCD TFT displays

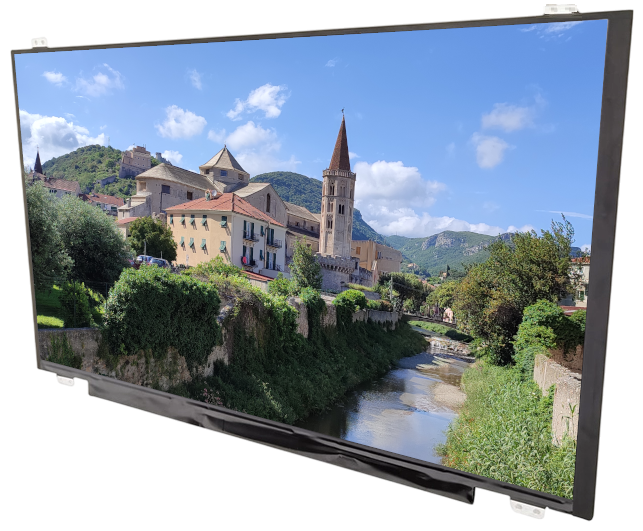

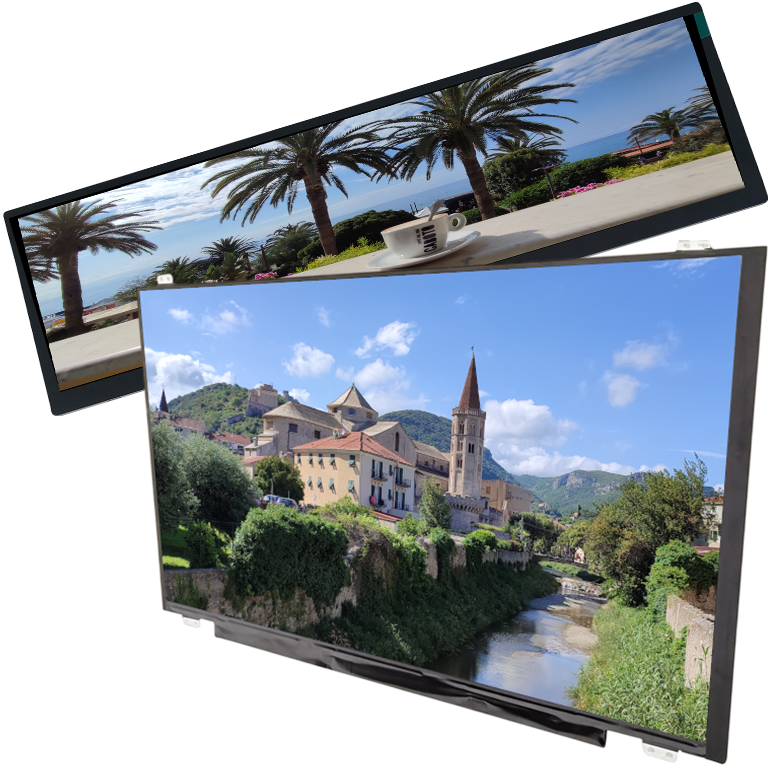

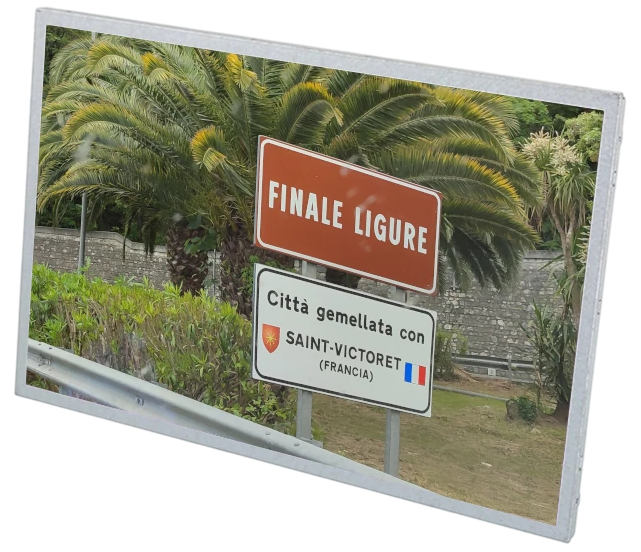

Overview of our displays
Display & Control offers an extensive portfolio of LCD TFT displays covering a wide range of diagonals and resolutions to meet the most diverse requirements. Our strength lies in displays with resolutions ranging from 480×272 to 2560×1440/1600. This range includes a wide range of form factors, adapted to specific applications and designs. To ensure that you always have full control over your displays, our displays are also available with modern touch technologies. This combination of flexibility and functionality makes our products a reliable choice for numerous applications.
Viewing angles & brightness
– 6 o’clock/12 o’clock, Wide (IPS)
– Standard-Brightness, Sunlight readable
Resolutions & diagonals
– 480×272 – 640×480 – 1920×1080/1200 – 2560×1440/1600
– 4.3″ – 21.5″
Standard aspect ratios:
– 4:3, 5:4, 16:9, 16:10

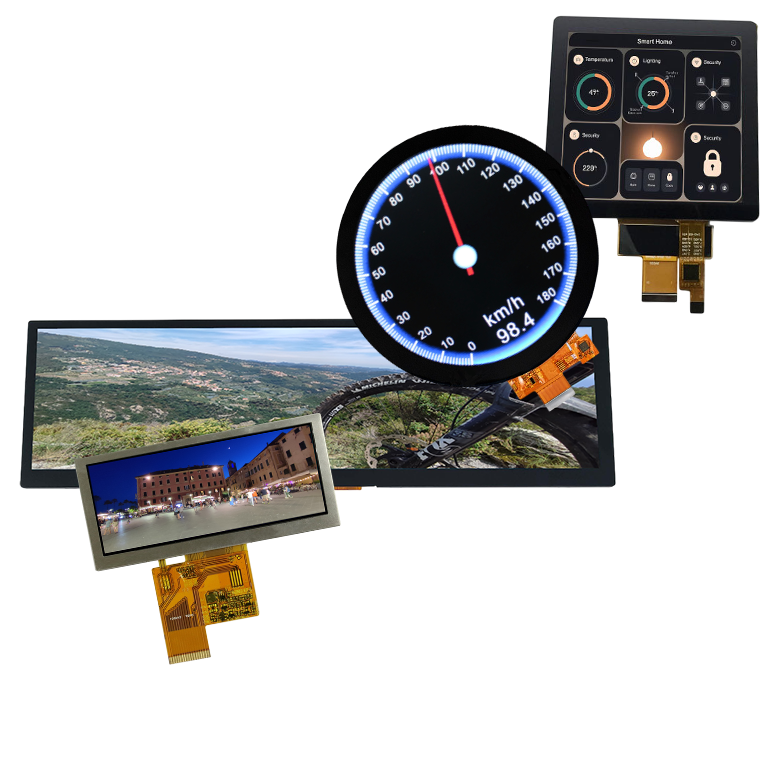

Special formats

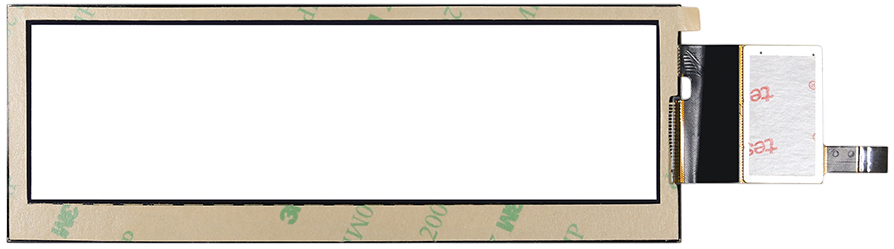

– Bar-type / Streched
– Square
– Circular
Own Hardware
ADB100
Unified interface for 7″ and 10.1″ TFT displays
The new ADB-100 adapter board standardizes LVDS interfaces for 7″ and 10.1″ TFT displays from different manufacturers – the first series models with 1024×600 and 1280×800 resolution are now available.
ADB-100 launches with 7″ and 10.1″ LVDS displays: Unified interface for 1024×600 and 1280×800 now available
The ADB-100 is a compact, single-sided adapter board that enables 7″ and 10.1″ LCD-TFT displays with LVDS interfaces to be driven via a unified board-to-wire interface. It generates all required LCD bias voltages (VGL, VGH, VCOM) from a single 3.3 V supply, integrates a powerful LED driver with up to 480 mA and 40 V output voltage, and includes a standardized I²C touch-controller interface. The board is mounted directly on the back of the display, significantly reducing integration effort. The first series products are now available: a 7″ display with 1024 × 600 pixels and a 10.1″ model with 1280 × 800 pixels.
Technical features of the ADB-100 at a glance:
LCD bias generation: Triple regulated outputs (positive/negative/VCOM) with adjustable power-on sequencing (tₕ₁, tₕ₂) – factory-configured to match each specific panel.
LED backlight driver: Up to 480 mA, up to 40 V, dimming ratio of 10,000:1 at 100 Hz PWM; operation with either +5 V or +12 V input supply.
Unified connectors for:
• LVDS data and display power supply
• Backlight power and control (PWM/EN)
• I²C touch controller (SDA, SCL, INT, Reset)LVDS loop-through: Color depth and data mapping identical to the target panel.
Mechanics: Single-sided assembly, low profile, direct rear-mounting on the display.
The ADB-100 is designed for industrial use and supports operating temperatures according to the display specification. The factory-set configuration of bias voltages and sequencing timings ensures immediate plug-and-play operation without any additional software or hardware adjustments. Further display sizes and resolutions are currently in preparation.

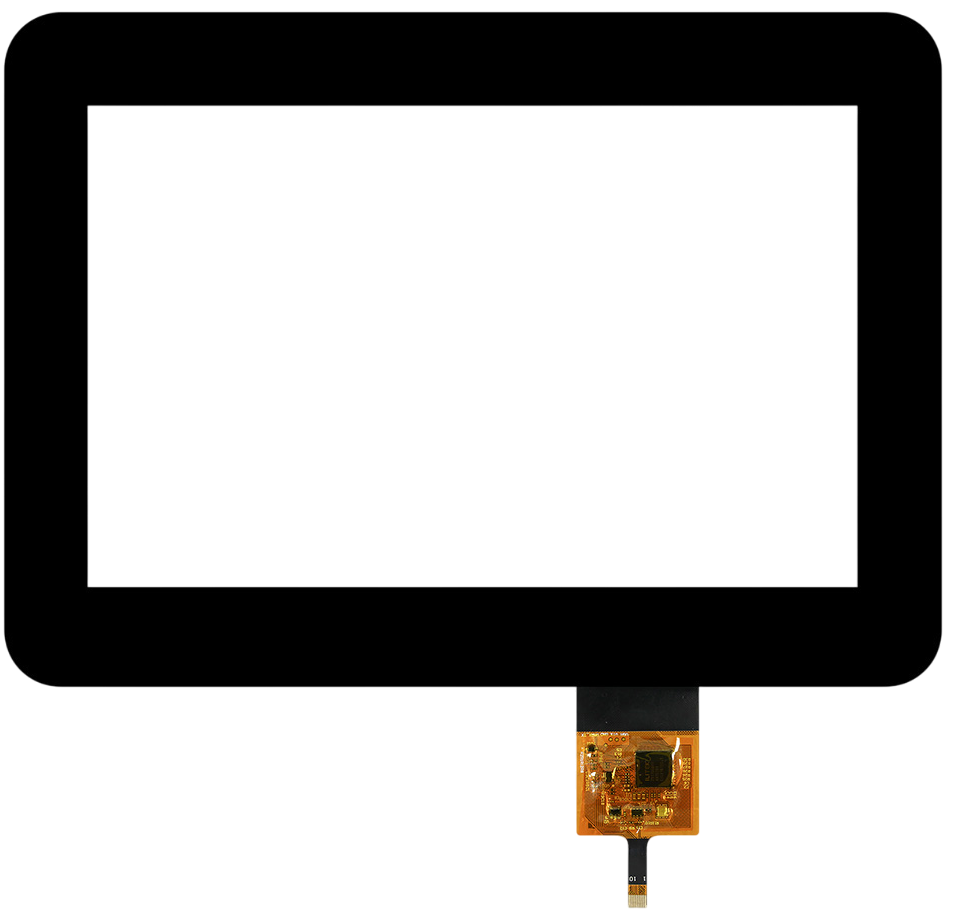

Touch technology: PCAP (capacitive), RTD (resistive)
– Touch Points: 1-10
– Interface: USB, I2C
– Cover glass:
– Glass thickness/type
– Color/print
– Surface options:
– anti-reflective (AG: anti-glare)
– anti-reflective (AR)
– anti-fingerprint (AF)
– anti-bacterial
– Assembly:
– Air bonding
– OCA bonding
